End to End Testing using component strategy

Component Testing is an approach where we divide automated tests into applicable layers and target specific responsibilities of various components — to reduce interdependencies, execution time, and logic complexity.

If every business rule lives in a single UI journey, one slow warehouse query or one batch job running late turns your “E2E” into a lottery. Component strategy breaks the monolith in your test design, not necessarily in your architecture.

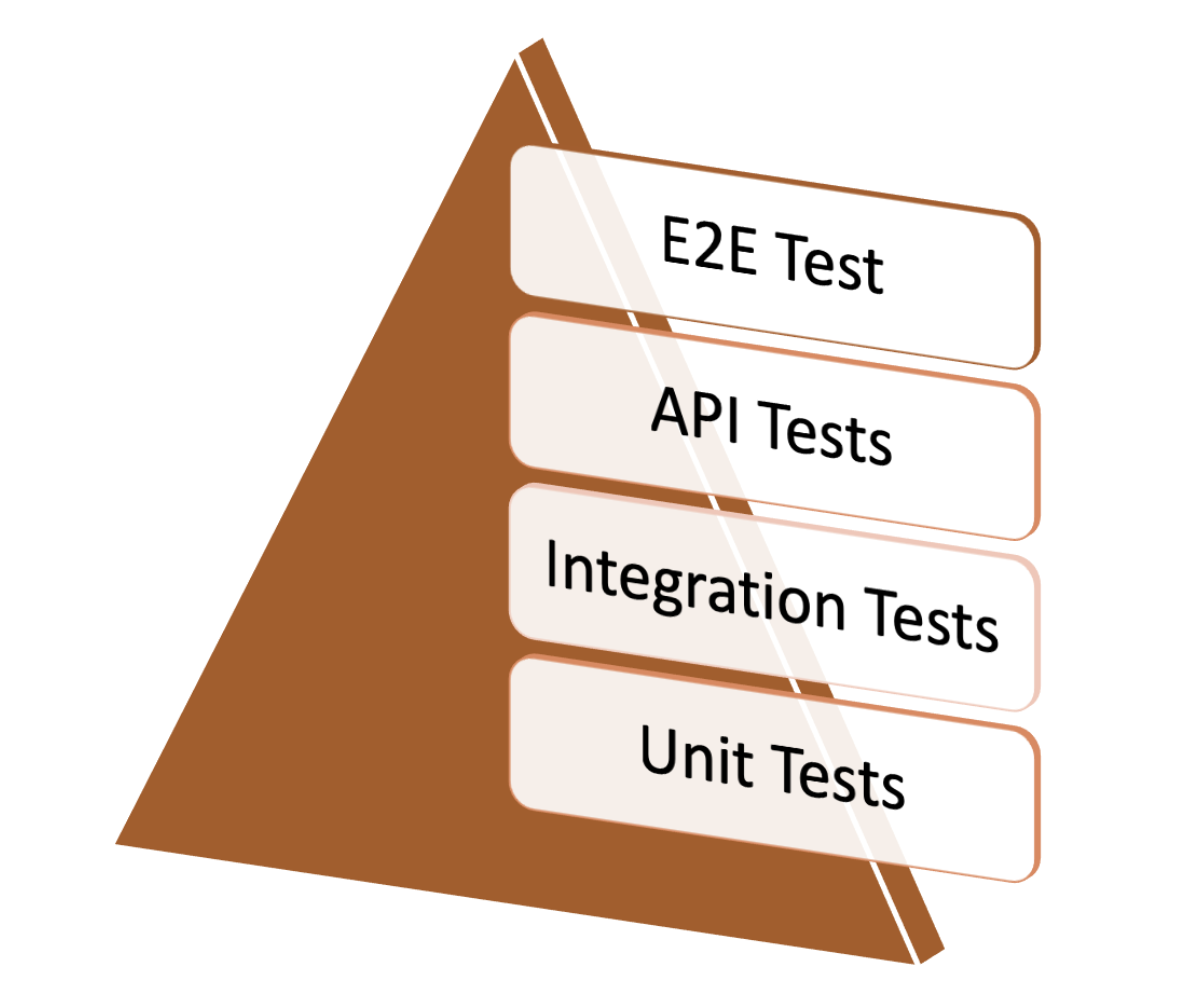

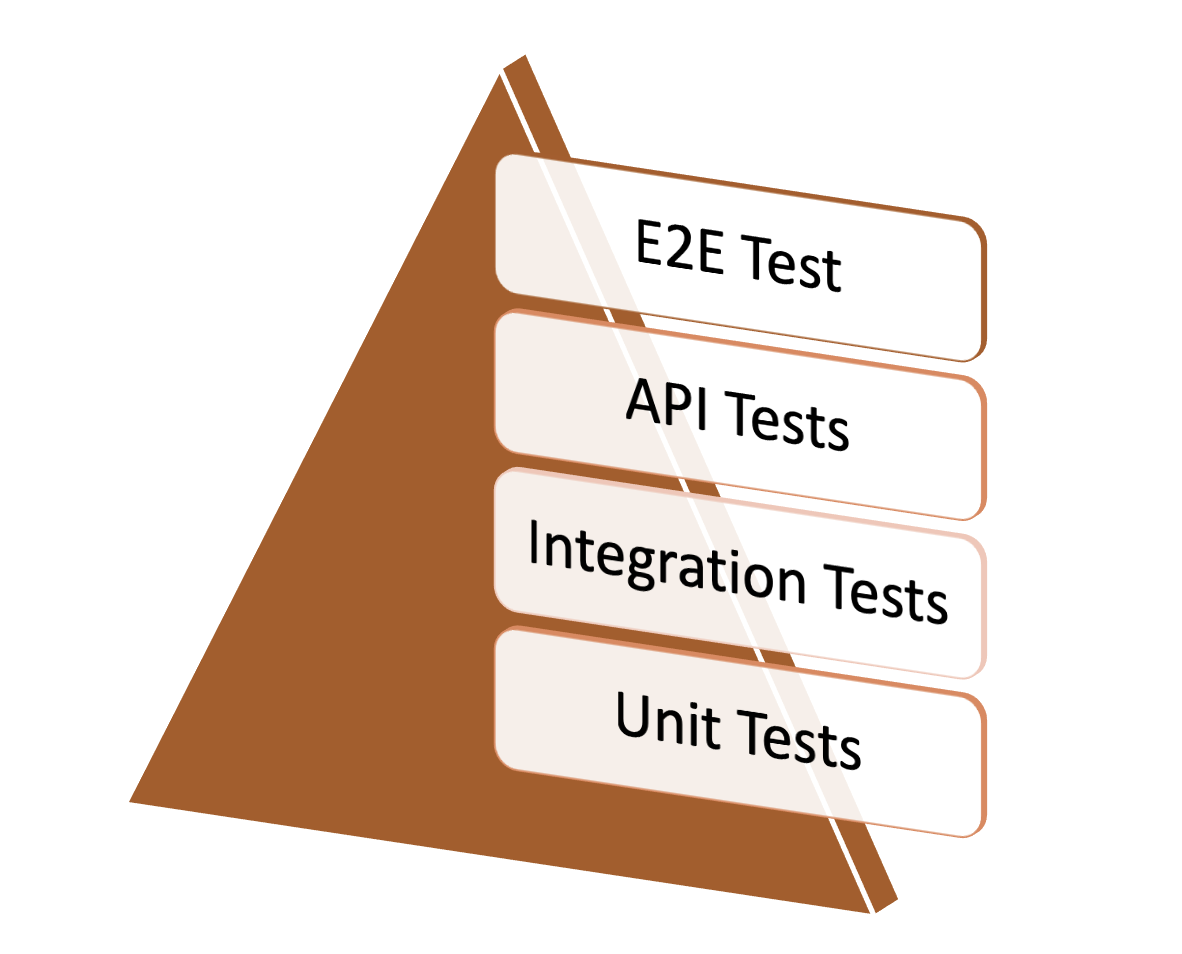

This pairs naturally with the test pyramid. Below is how I apply it on real systems.

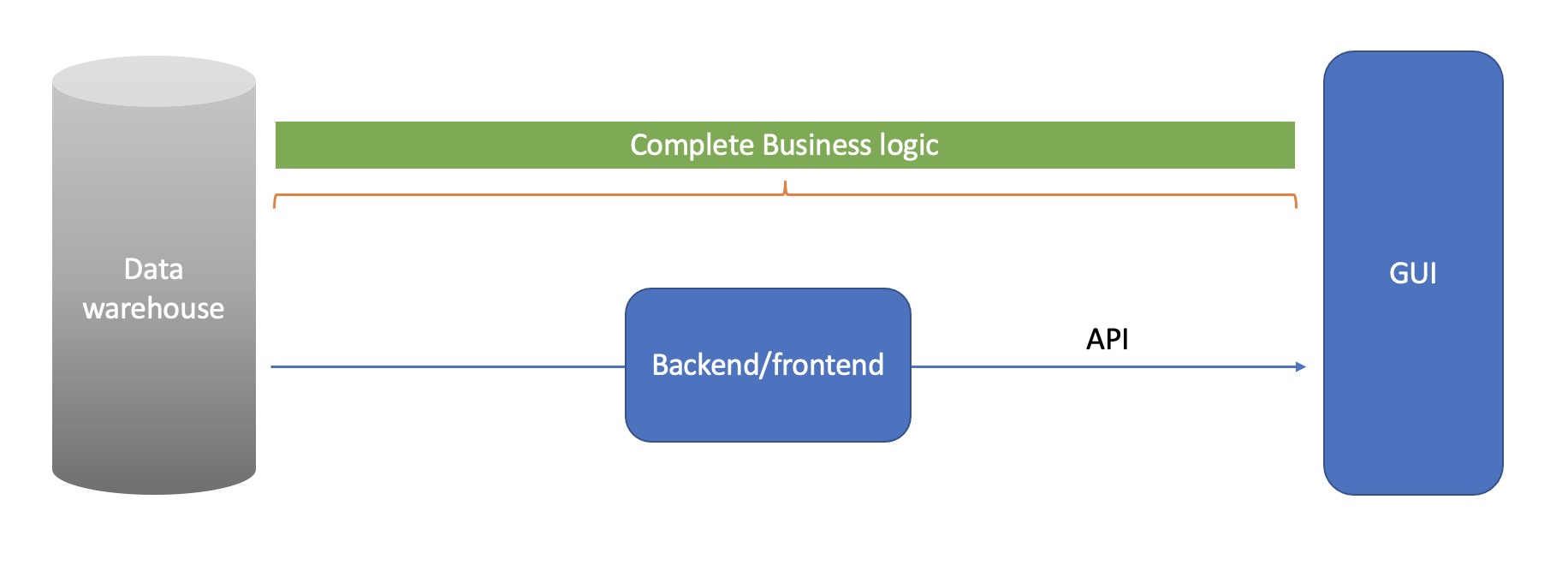

The usual practice — and why it hurts

We have observed a pattern: teams write end-to-end automated tests by only targeting the GUI to validate complete business logic.

This approach can work when:

• The backend is very simple with little business logic
• Data is a basic repository with small, stable datasets
• Releases are infrequent and the suite stays small

Otherwise, I do not recommend validating complete business logic on the UI layer alone. YOU pay in minutes per run, flaky failures, and RCA sessions that end with “the batch was still running.”

Before / after snapshot

UI-only E2E	Component approach
One 12-minute test per scenario	Aggregation test ~30s, API test ~5s, UI smoke ~90s
Failure: “checkout broken”	Failure: “pricing API returned 409”
Blocked when warehouse lags	UI tests use mocked API responses

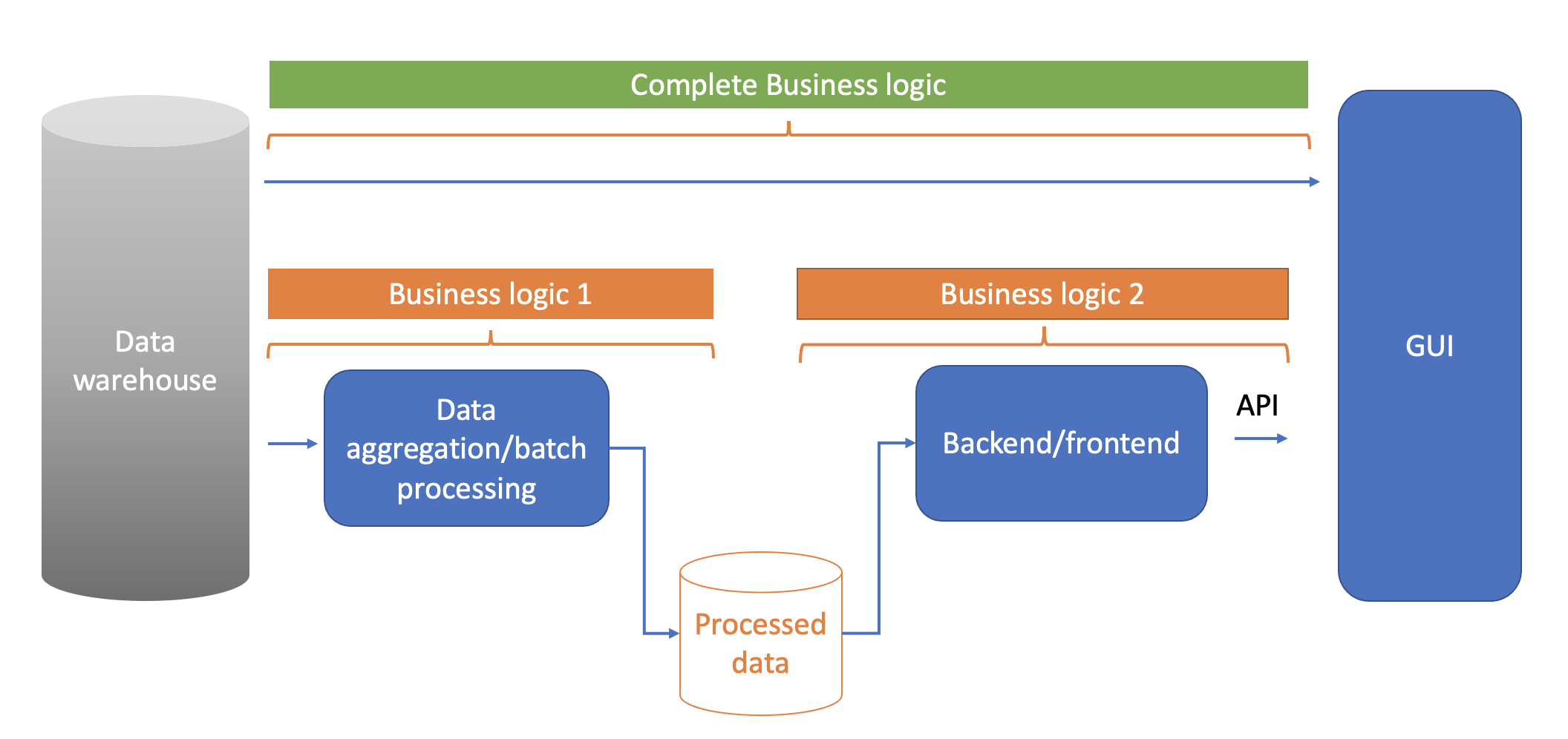

Component approach — break down the logic first

Understand application component responsibilities, then break business logic into parts. That helps YOU write more effective E2Es.

Benefits:

• Reduce flaky tests
• Drastically reduce feedback time
• Accurate failure analysis — pinpoint the flawed area

Business logic 1: Data aggregation / batch logic → aggregation component tests

Business logic 2: Application service logic → API component tests, UI component tests, then system tests

Lets dig into each layer with examples.

Data aggregation / batch component tests

If your application involves aggregation or batch processing, test that logic in this layer only.

Why not on UI E2E?

• Warehouse pulls can take unpredictably long
• Batch schedules add coupling — tests fail when components are out of sync, not when logic is wrong

Example: A nightly sales rollup reads 40 tables. A component test feeds a fixed fixture of orders and asserts the rollup table — no browser, no cron wait. When the rollup rule changes, YOU know in seconds.

API component tests

Take login — it is not best practice to test every login combination on the UI.

• Bare minimum happy path on UI E2E
• Invalid credentials, lockout, password expiry, and role-based access on the API layer
• Negative authorization cases without spinning up a browser per variant

Example scenario: Ten roles × five protected endpoints = fifty API checks. One UI test confirms a standard user sees the dashboard. The API suite catches a missing 403 before QA spends an afternoon clicking menus.

Cut UI dependency, improve coverage, fewer invalid failures.

UI component tests — control the data

We may not always control application test data. That creates trouble maintaining datasets for every edge case.

• Mock or stub API responses fed to the GUI
• Validate specific business cases and their reflection in the UI
• Cut backend dependency; make UI tests robust

Example: Test “out of stock” banner by returning { "stock": 0 } from a stubbed catalog API — no need to drain inventory in a shared QA database that three other teams use.

System tests — happy critical paths only

By now YOU have tested at various component levels. System tests prove integration — frontend and backend wired together.

Keep the count low. Cover happy critical paths only: place order, register user, submit claim. If a system test fails, component suites should already narrow the blast radius.

Putting it together on one feature

Imagine refund processing:

1. Batch layer — settlement file produces refundable rows (fixture input, assert output file)
2. API layer — POST /refunds with valid, invalid, and duplicate IDs
3. UI layer — refund button disabled when API returns ineligible (mocked)
4. System — one journey: user requests refund, sees confirmation email trigger

Four layers, one feature, no twelve-minute UI marathon.

When microservices enter the picture

Component boundaries often map to services. The same split applies — see Microservices Test Strategy for how contract tests and environments fit in.

Your turn

Pick one flaky UI test on YOUR project. Which layer could own the assertion instead? Start there; do not rewrite the world in a sprint.

Happy Testing :)
